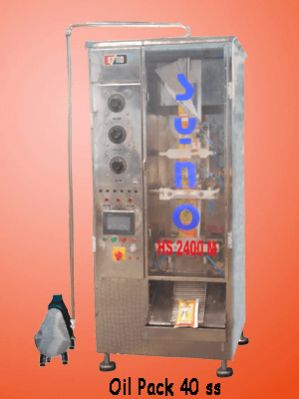

40SS Fully Automatic Oil Pouch Packing Machine

40SS Fully Automatic Oil Pouch Packing Machine

MOQ : 1 Piece

Business Type Manufacturer, Supplier
Country of Origin India
Automatic Grade Fully Automatic
Power 5-7kw
Click to view more

Preferred Buyer From

Location Anywhere in India

Product Details

Driven Type
Electric
Warrenty
1 Year
Brand Name
SYNO

Features

  • Dedicated Programmable Logic Controller with Touch Screen Display With Advance Technology Drive System
  • Fully automatic P.L.C. HMI Touch Screen.
  • Easy Access to control points
  • Simple for maintenance
  • Sealing Heat Controlled by Solid State Relays.
  • Pouch length controlled by Servo Motor.
  • MS Fabricated Body with SS Cladding,
  • Improved heat control system ensures Good Sealing
  • Horizontal band sealing of 4 mm width on each side ensures less chances of leakages



Yes! I am interested


Technical Specification

Model Oil Pack 40 Ss (High Speed)
Product Be Packed Oil, Vanaspati, Ghee Etc.
Feeding System Continuous Filling By Positive Displacement Gear Pump.
Dosage Up To 1000 Ml /grams
Accuracy ± 1 Gram For1000 Grams &500 Grams.
Average Output / Minute 40 To 43 Pouches Per Minute For 5 Layer.
Packaging Material Co-Extruded 5 Layer Nylon Barrier Multilayer Films.
Film Width 324 Mm ± 2mm
Size Of Pouch 162 Mm ± 1mm ( W ) X 250 Mm ( L ) Max
Film Thikness 100 Micron
Weight Of Film Roll 18 To 20 Kgs Approx. Type Of Seal : Side Seal / Impulse Type
Supplies To The Machine 415 Volts ± 1%, 3 Phase 50 C/S.And Neutral.
Connected Load 6 Kw
Power Consumption 3 Kw/Hr
Electrical Connection 4mm, 4 Core Armored Cable
Cooling Water Cooling Water Pressure -2 Kg /cm2 330 Ltr/Hr. 50 To 7 0c
Description Of The Machine This Consist Of Stainless Steel Body Built On A Ms
Overal Dimensions 2360 ( H )X 950 ( W ) X 900 ( D ) All In Mm.
Machine Weight 850 Kgs Approx.
