| Business Type | Manufacturer, Supplier |
| Country of Origin | India |
| Voltage | 220V |
| Automatic Grade | Fully Automatic |
| Click to view more | |
Product Details
Power
3-5kw
Driven Type
Electric
Warrenty
1 Year
Brand Name
SYNO
Features
- Fully automatic with electronic controls
- Easy Access to control points
- Simple for maintenance
- No more any contractors and relays in circuit
- Pouch length controlled by Electro Magnetic Device
- MS Fabricated Body with SS Cladding
- Improved heat control system ensures Good Sealing
- Horizontal band sealing of 3mm width on each side ensures less chances of leakages.
Technical Specification

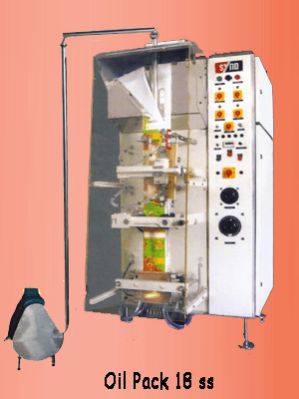

| Model | Oil pack 18 ss |
| Product be packed | Oil, vanaspati, ghee etc. |
| Feeding system | Gear pump motor control by Drive . |
| Dosage | Upto 1 ltr or 1 kg |
| Accuracy | ± 2 gms |
| Film width | 325 mm |
| Type of seal | Side seal |
| Size of pouch | 162.5 mm (w) 245 mm (l) |
| Machine speed | 18 Pouches per mint. |
| Packing material | Multi layer nylon based film |
| Sealing system | Impulse sealing system |
| Electrical supply | 415 volts. 50 hz, 3 phase. (230 volts, 50 hz, 1 phase) |
| Power consumption | 2.5 kw/hr |
| Peak power rating | 3.5 kw |
| Cooling water | 30 psi min. 165 ltr/lir. ( 5°C to 10 °C ) |
| Overall dimensions | 2000 (h) x 1000 (w) x 1200 (d) all in mmx |
| Machine weight | 650 Kgs |
